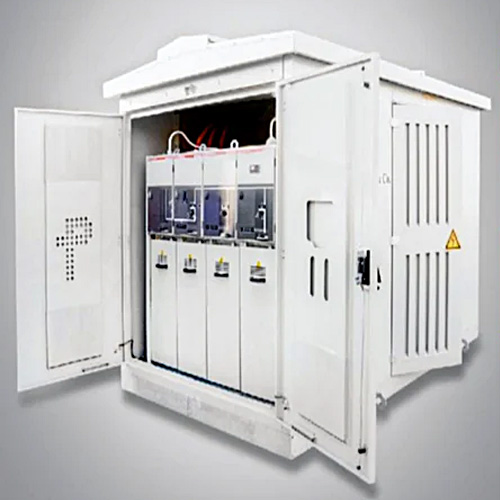

Package Substations

We can offer compact substations as per IEC 62271-202 and customer requirement. Compact Substations refer to a single housing that typically includes a high voltage switch or breaker, transformer and low voltage protection or distribution equipment.

Special Features

• Application: Outdoor/Indoor
• Maximum Power rating : 2.5 MVA
• Voltage clas: upto 36 KV class
• Transformer type : Dry type/ Oil filled with off circuit taps (or) Onload tap changer.
• HV Side confirguartions options : RMU/VCB/AIS with or without Metering /FRTO
• LV side configuration options : ACB/MCCB/HRC Fuses with or without APFC panel.
• IP Protection: IP 54 for HV/LV compartment ,IP 23 for Transformer.
• Internal arc tested enclosure.

Brands

• TMC India Pvt. Ltd
• Hammond Power Solutions.
• SIEMENS
• ABB
• SCHNEIDER
